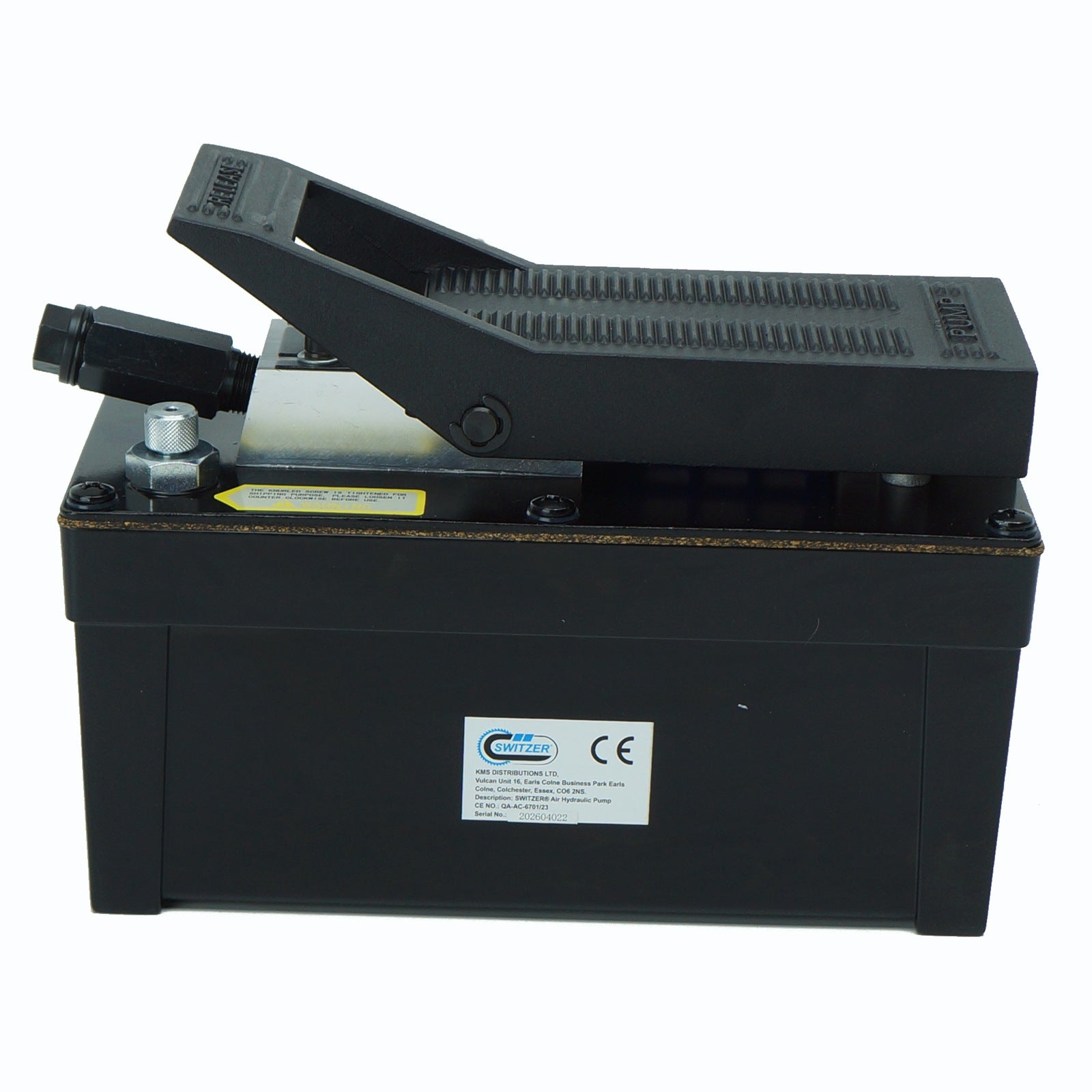

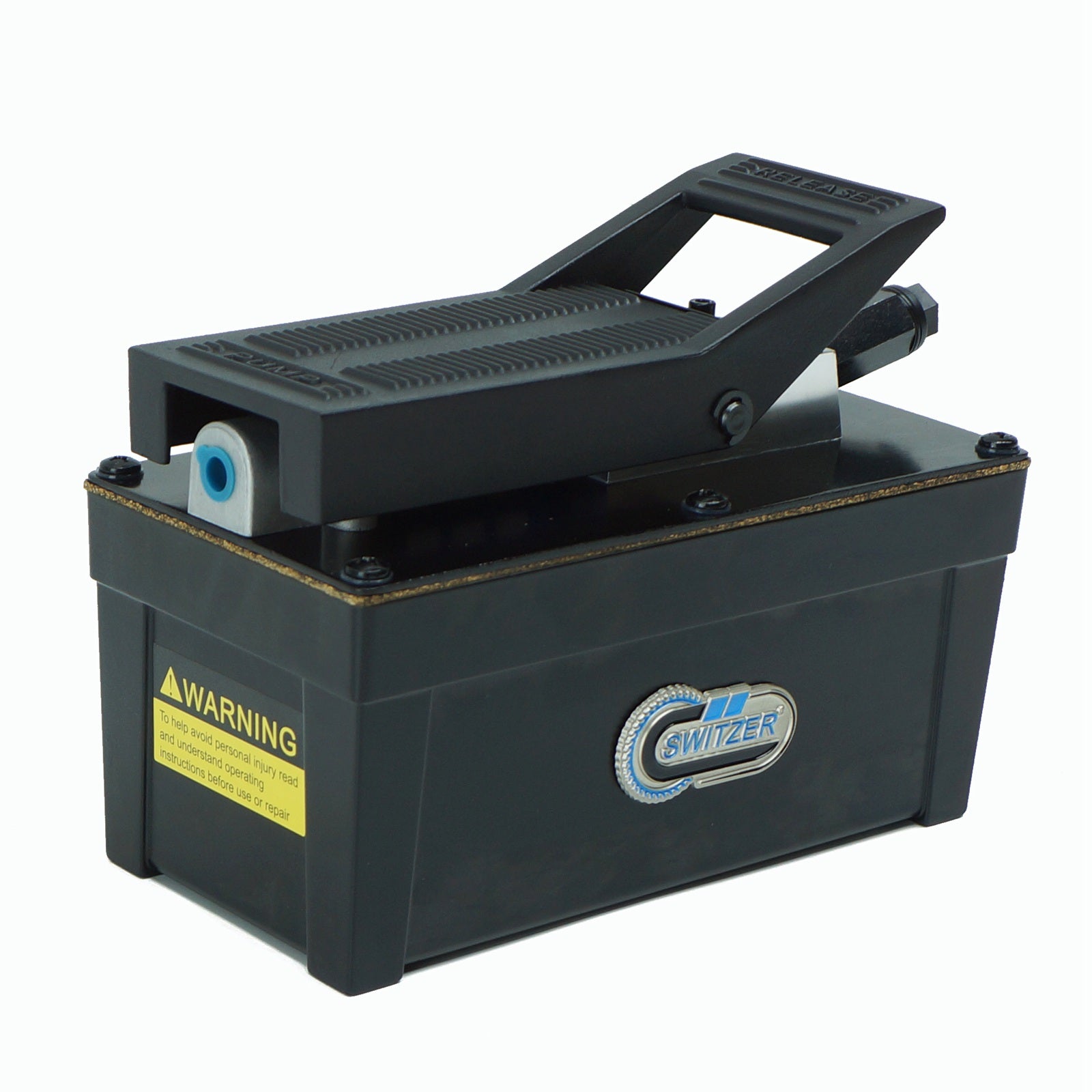

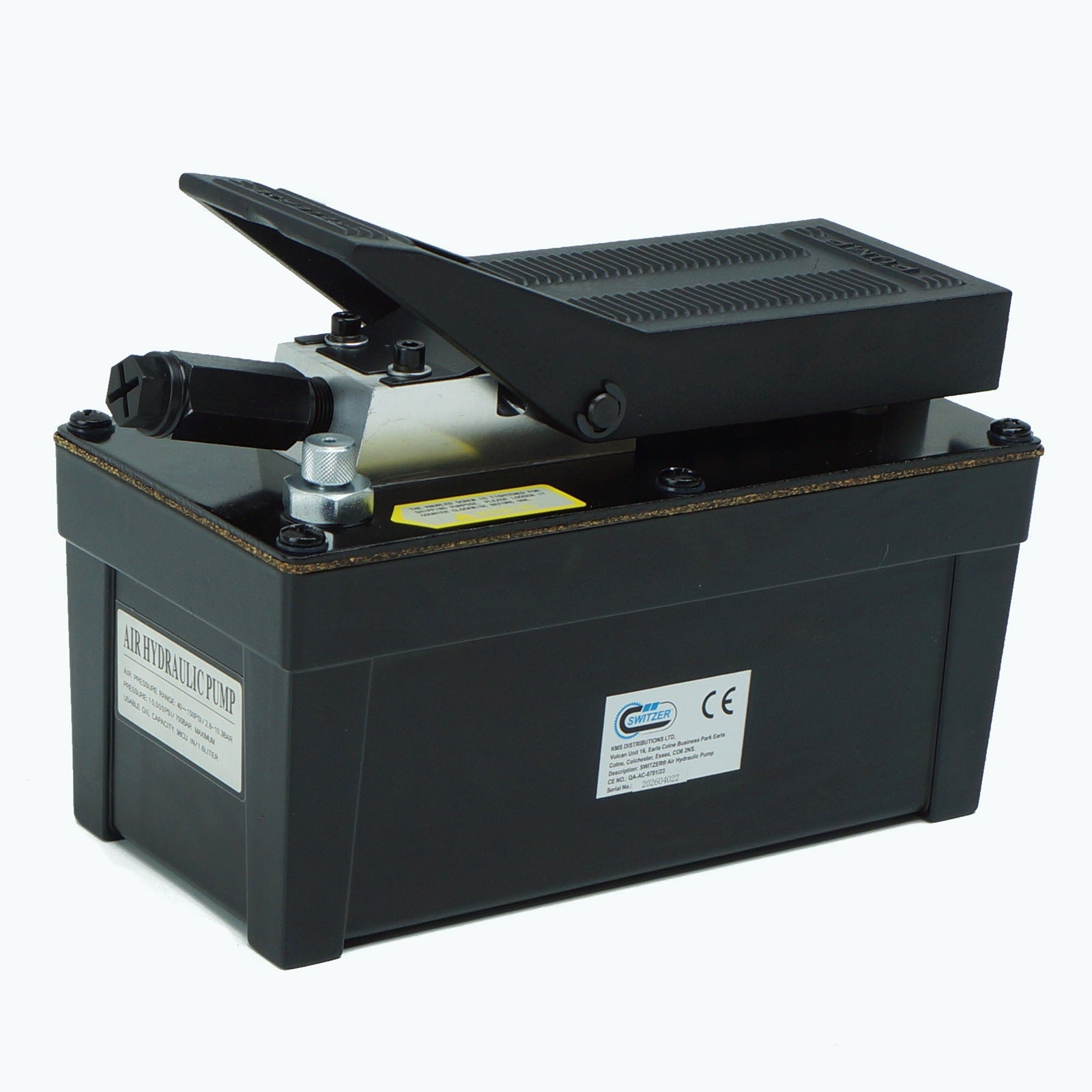

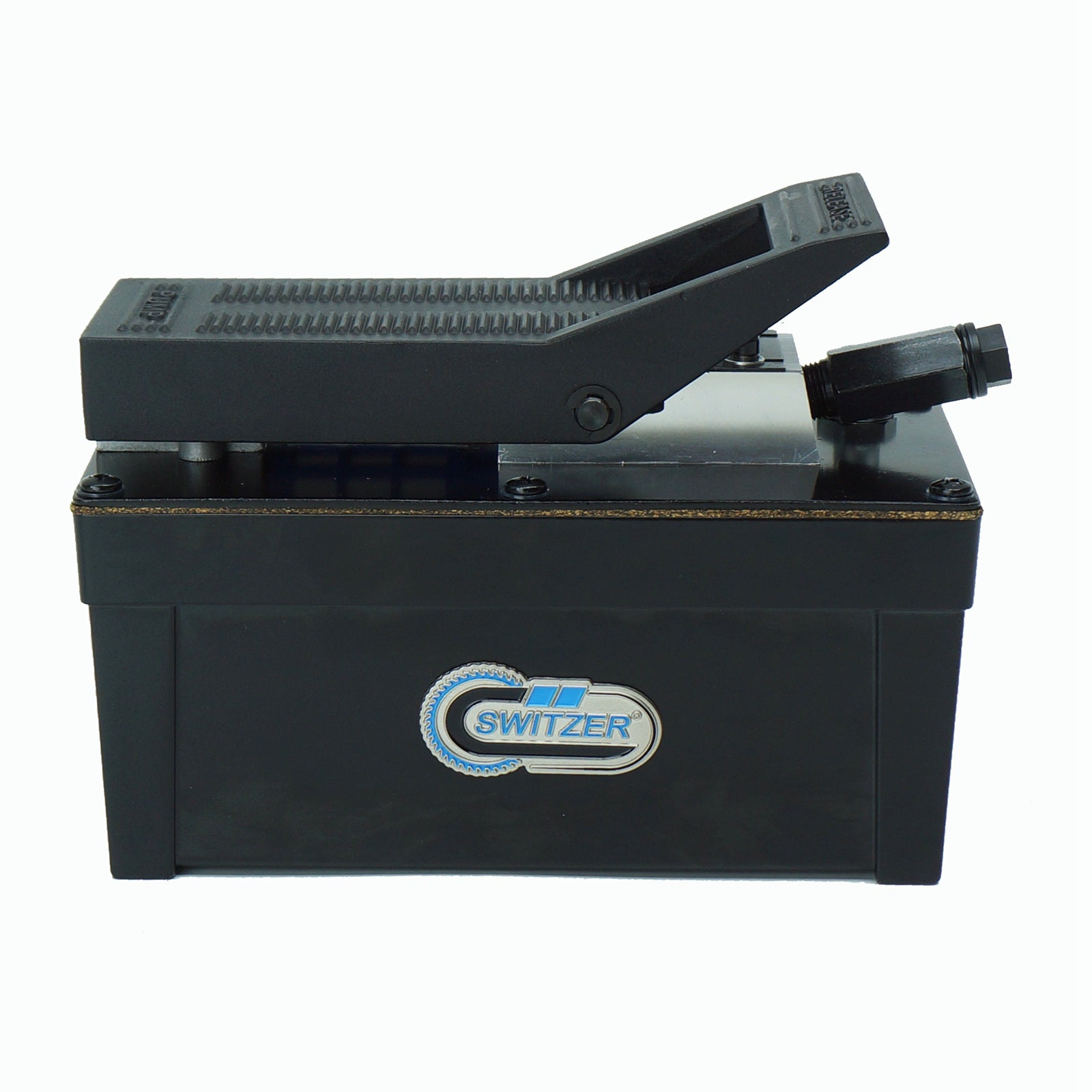

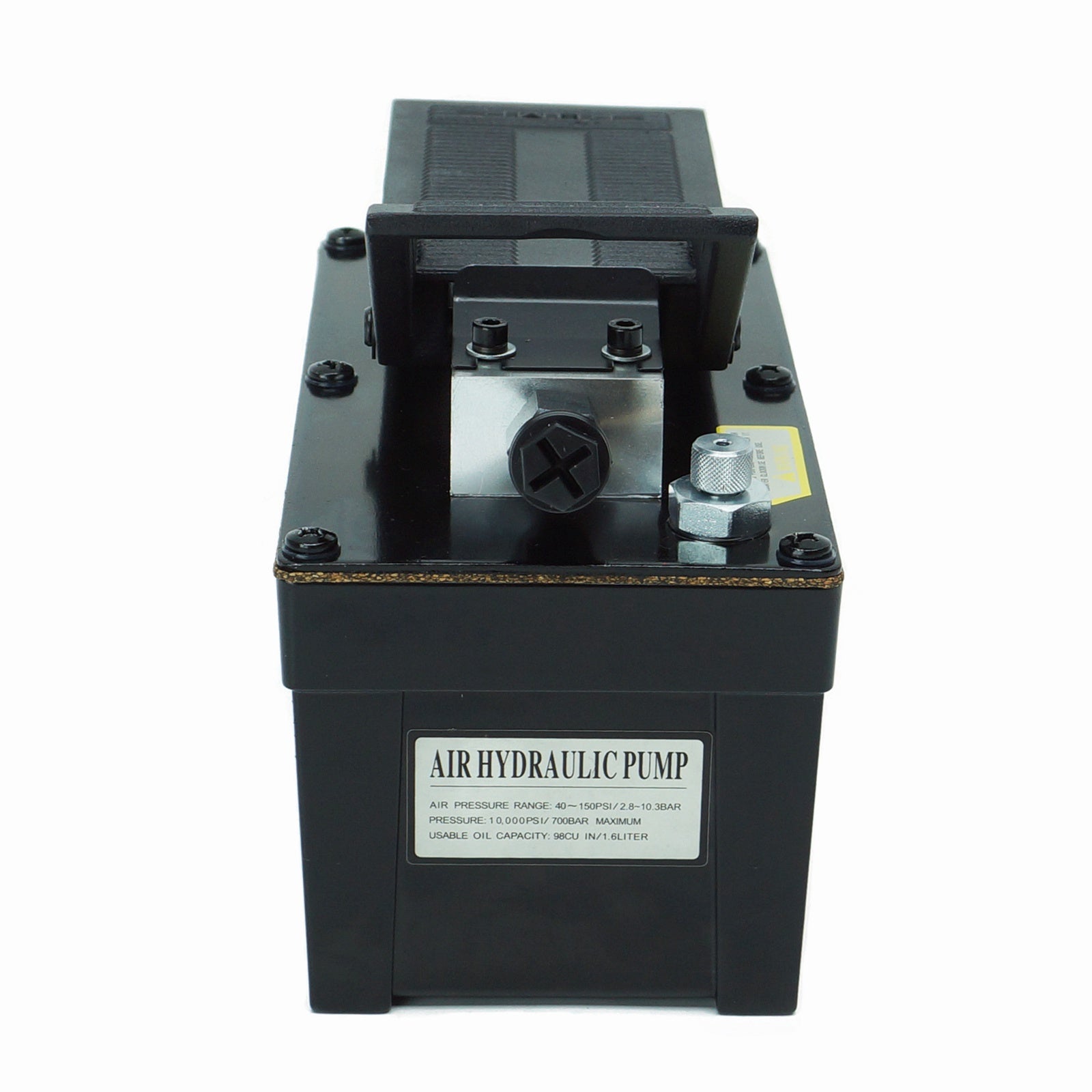

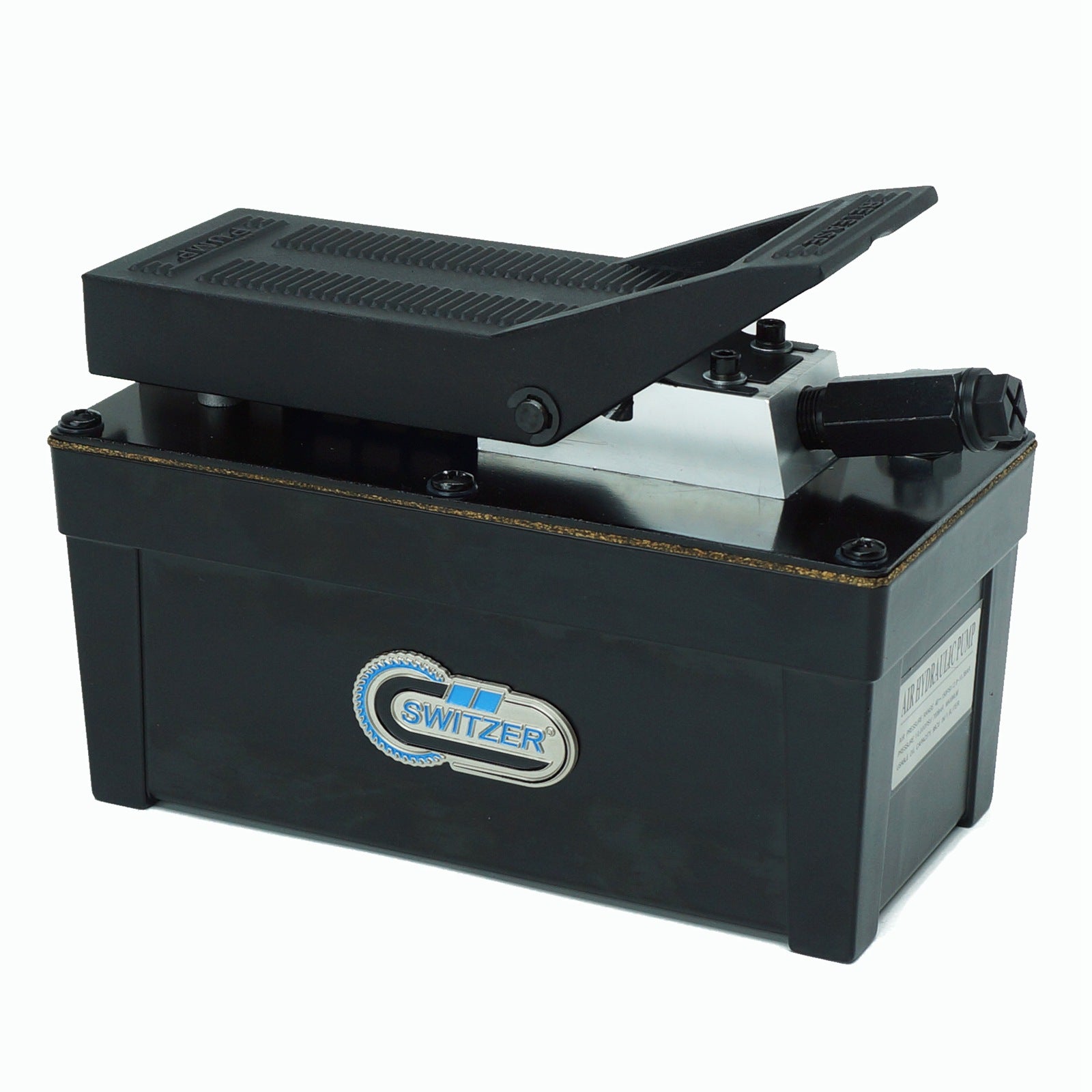

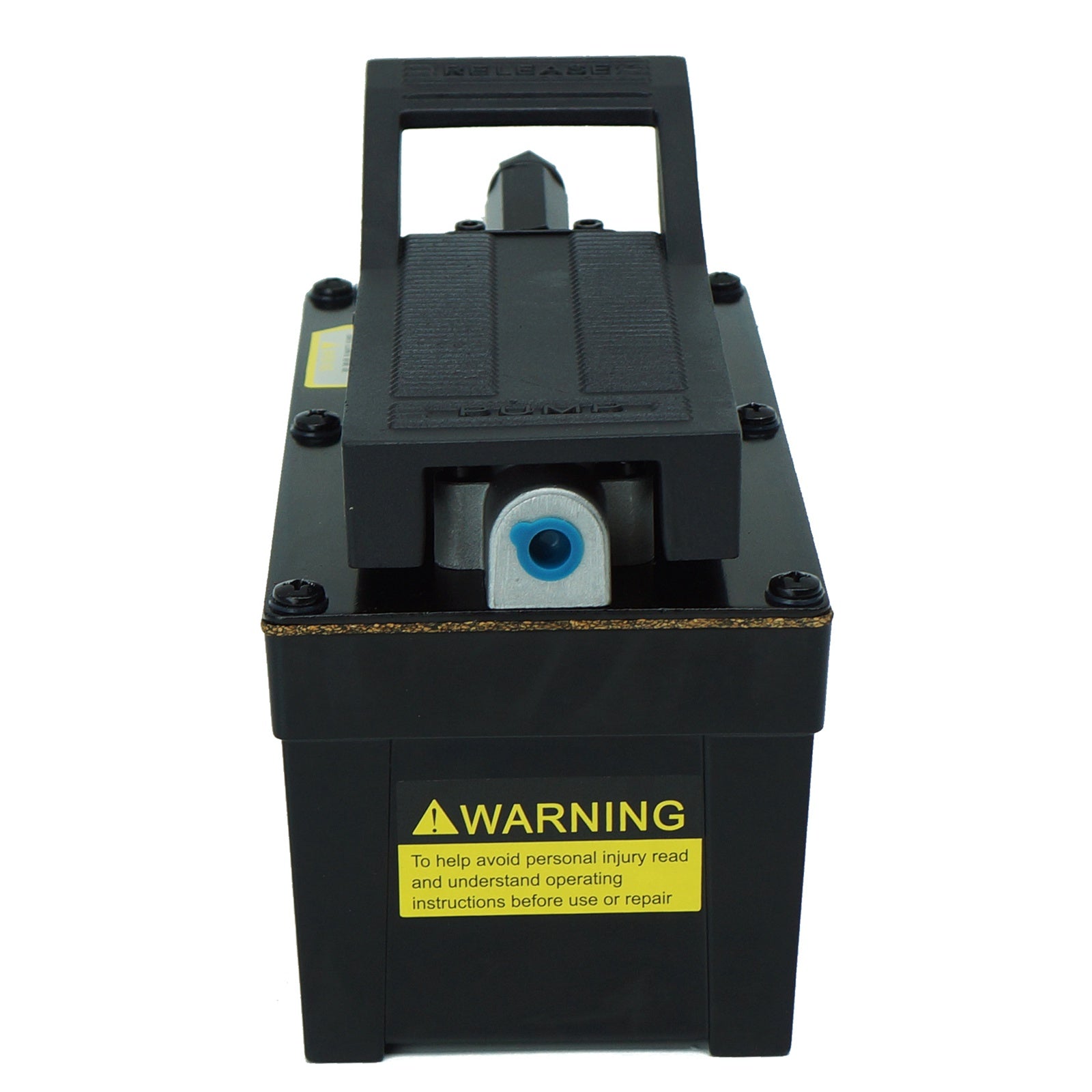

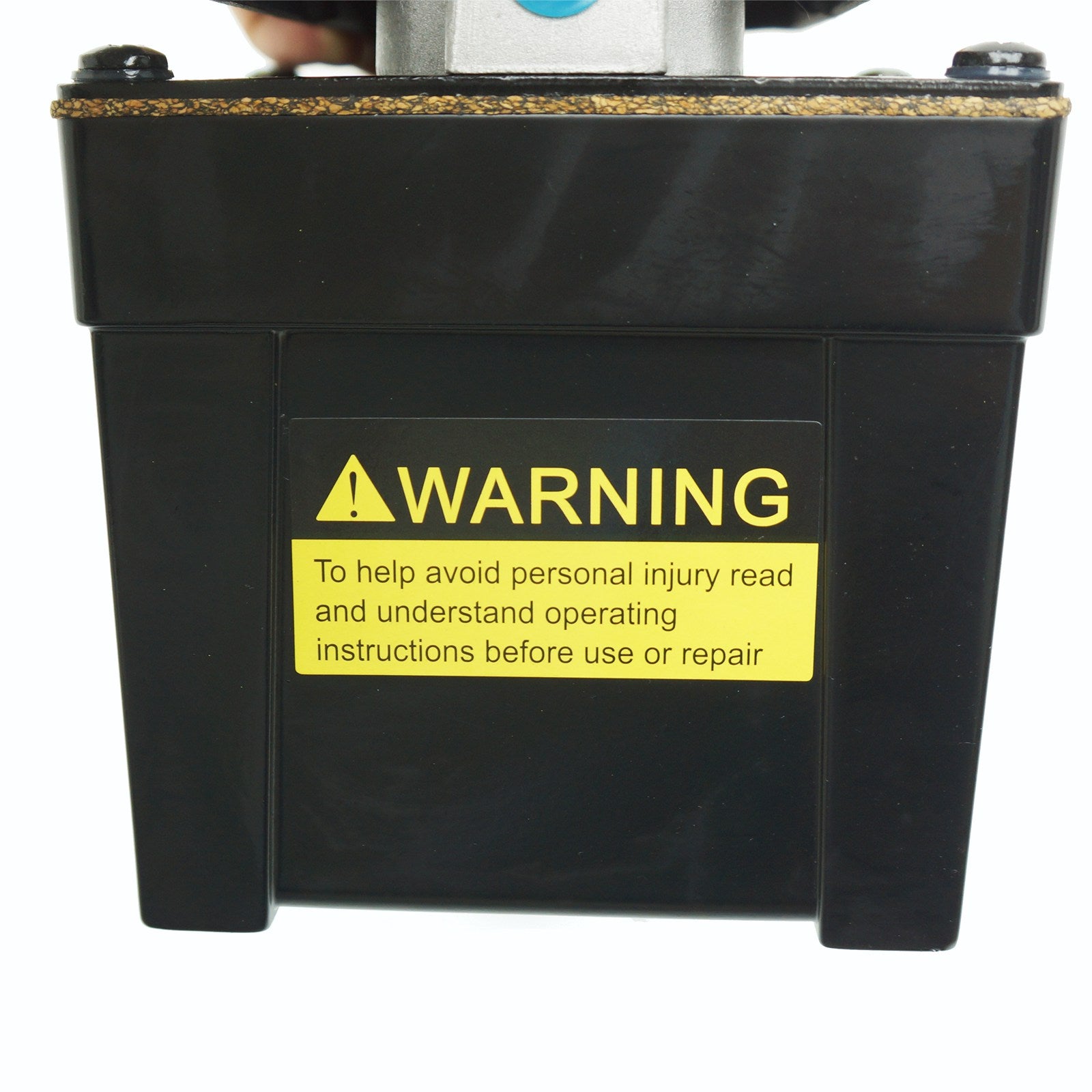

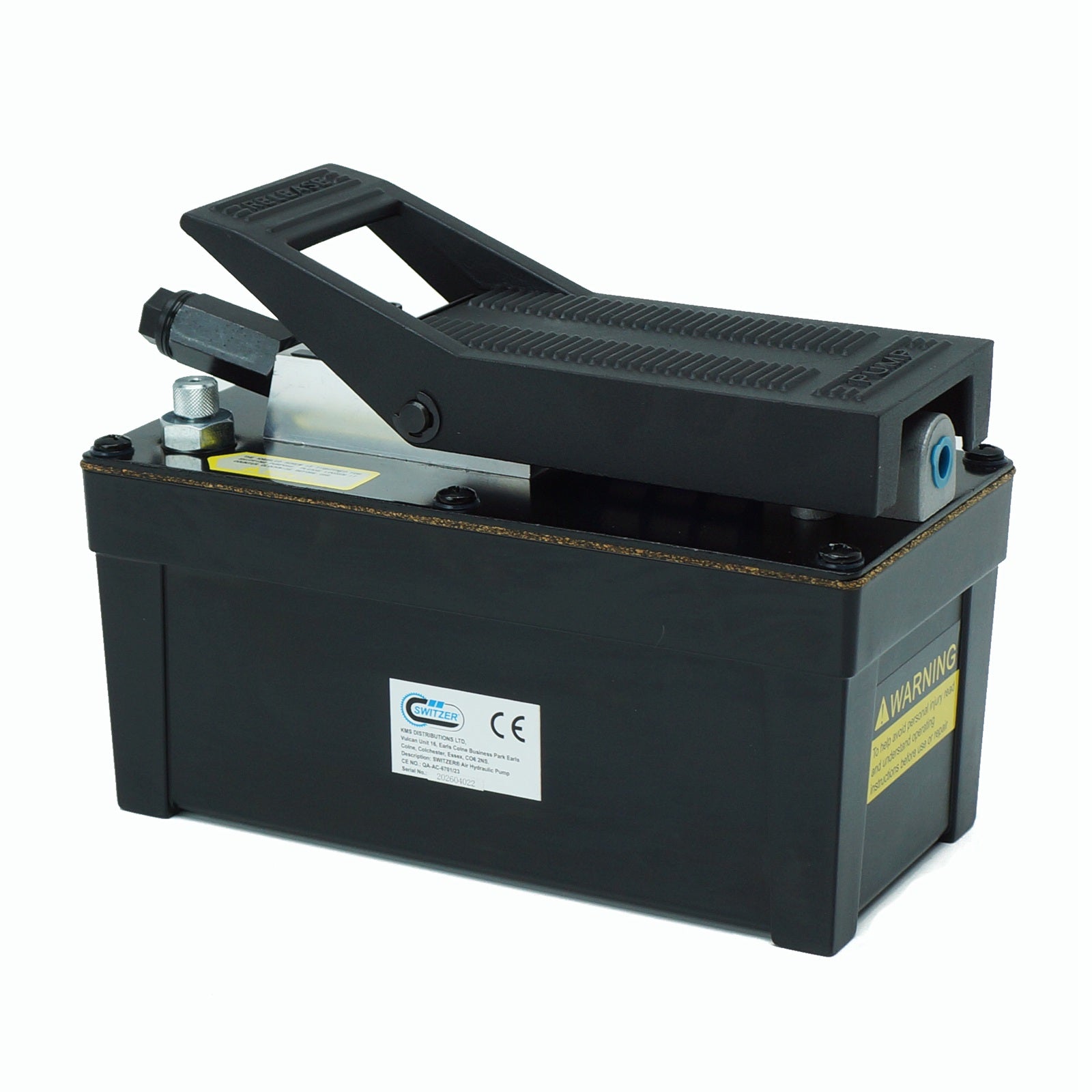

SwitZer Air Hydraulic Pump 10,000 PSI, Black

THIS ITEM IS NOT AVAILABLE FOR COLLECTION.

SwitZer Air Hydraulic Pump 10,000 PSI Hydraulic Foot Pump 1/2 Gal Reservoir

* HIGH-PRESSURE HYDRAULIC FOOT PUMP – Delivers adjustable working pressure from 40–150 PSI, ideal for hydraulic cylinders, presses, lifting equipment, pipe benders, workshop machinery, and industrial maintenance tasks.
* 1.7L OIL RESERVOIR CAPACITY – Large-capacity hydraulic pump reduces refill frequency and supports extended operation, making it suitable for professional garages, fabrication workshops, construction sites, and engineering applications.

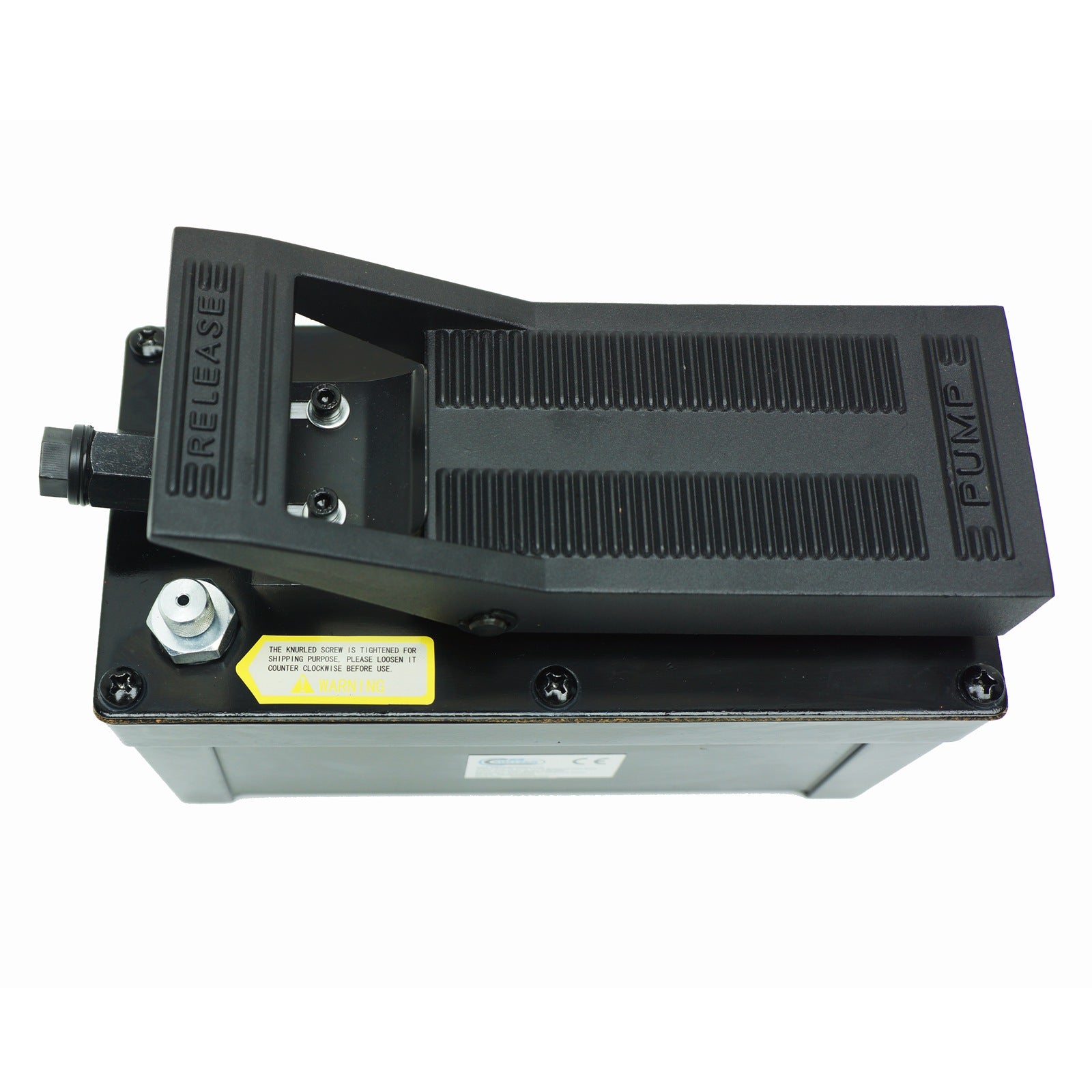

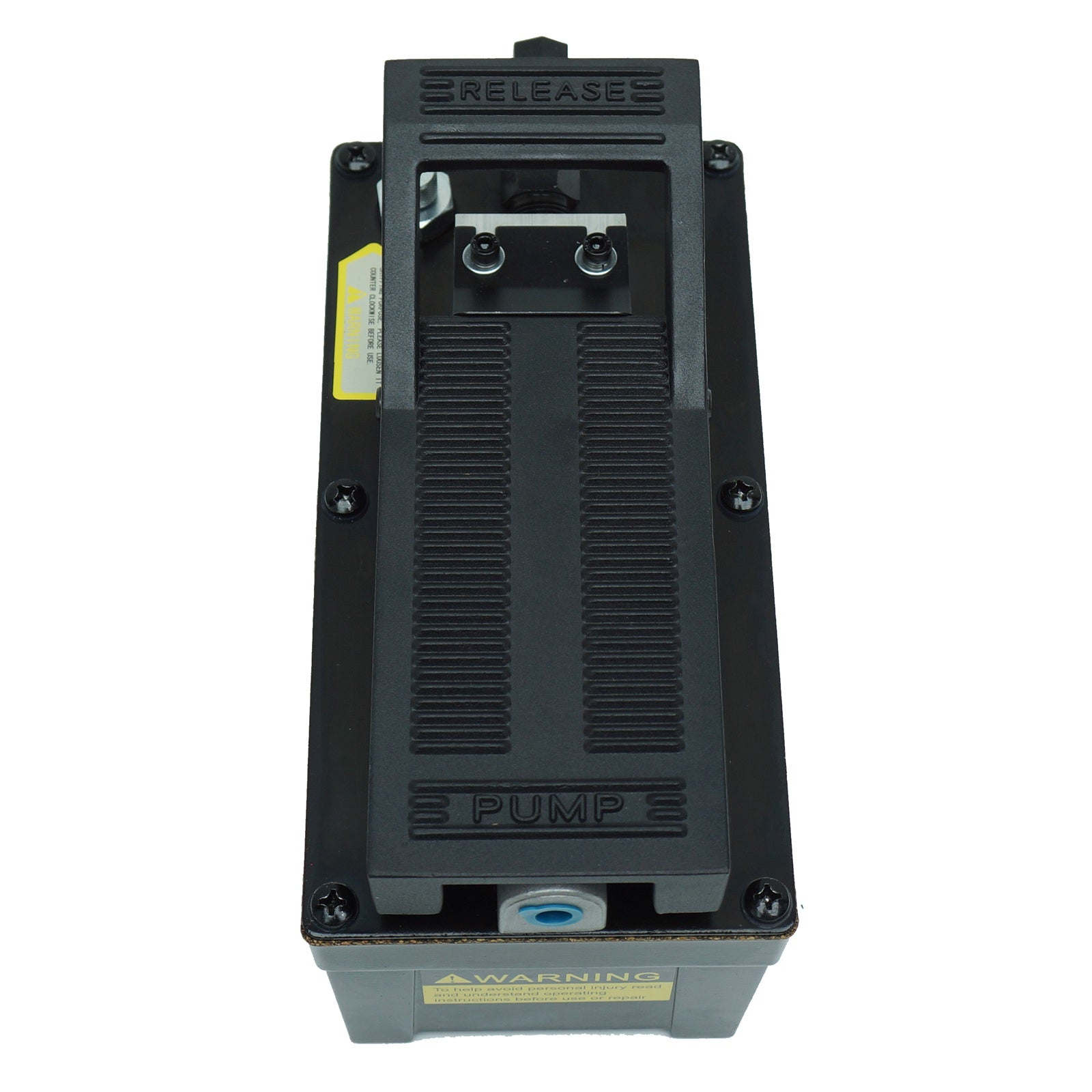

* HANDS-FREE FOOT PEDAL OPERATION – Ergonomic foot-actuated design allows precise hydraulic control while keeping both hands free for positioning tools and workpieces, improving efficiency and workplace safety.
* LIGHTWEIGHT ALUMINIUM RESERVOIR – Constructed from corrosion-resistant aluminium for reduced weight, excellent durability, and long-lasting performance. Ideal for workshop, garage, agricultural, and industrial environments where portability and rust resistance matter.
* COMPACT & EASY TO CONNECT – Features 1/4" NPT inlet and 3/8" NPT outlet connections and a compact portable design for easy transportation, storage, and job-site use.

* Model No.: SZ-AHP01;
* Colour: Black;

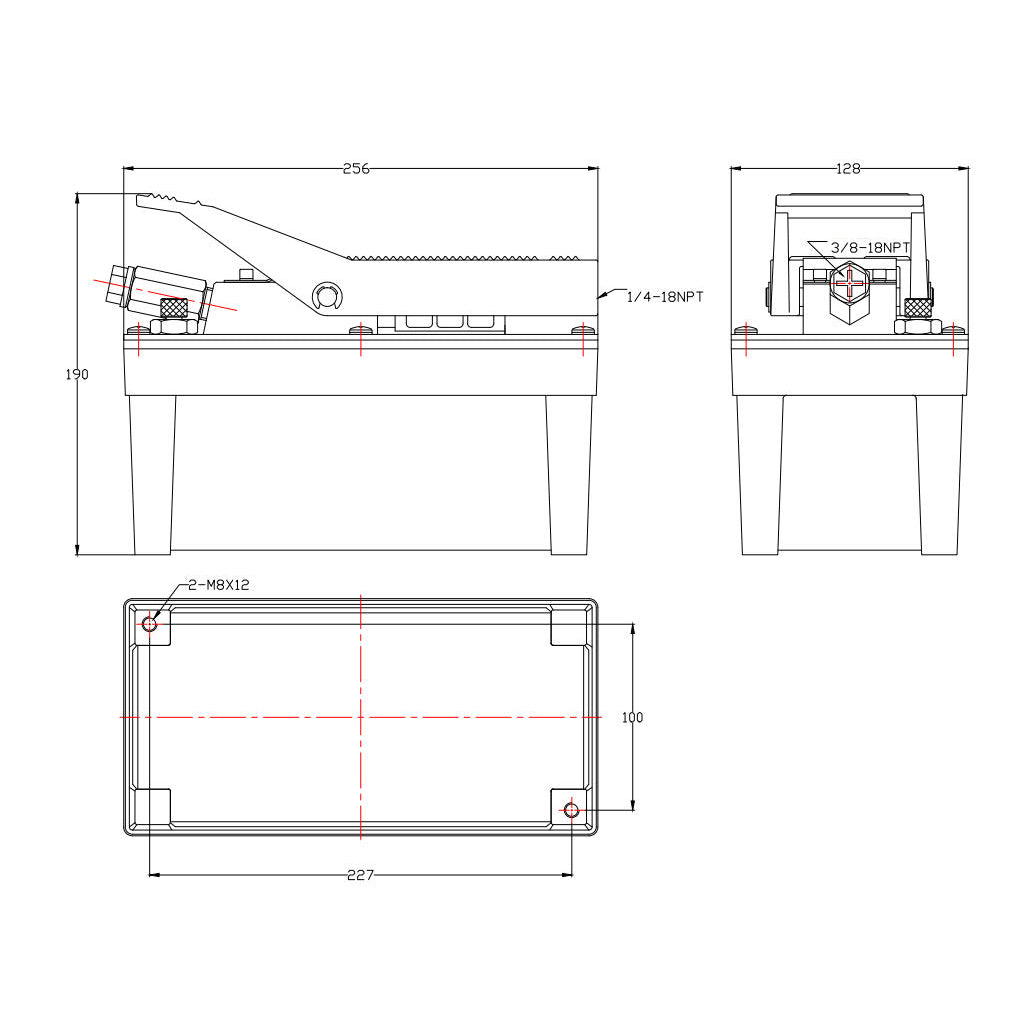

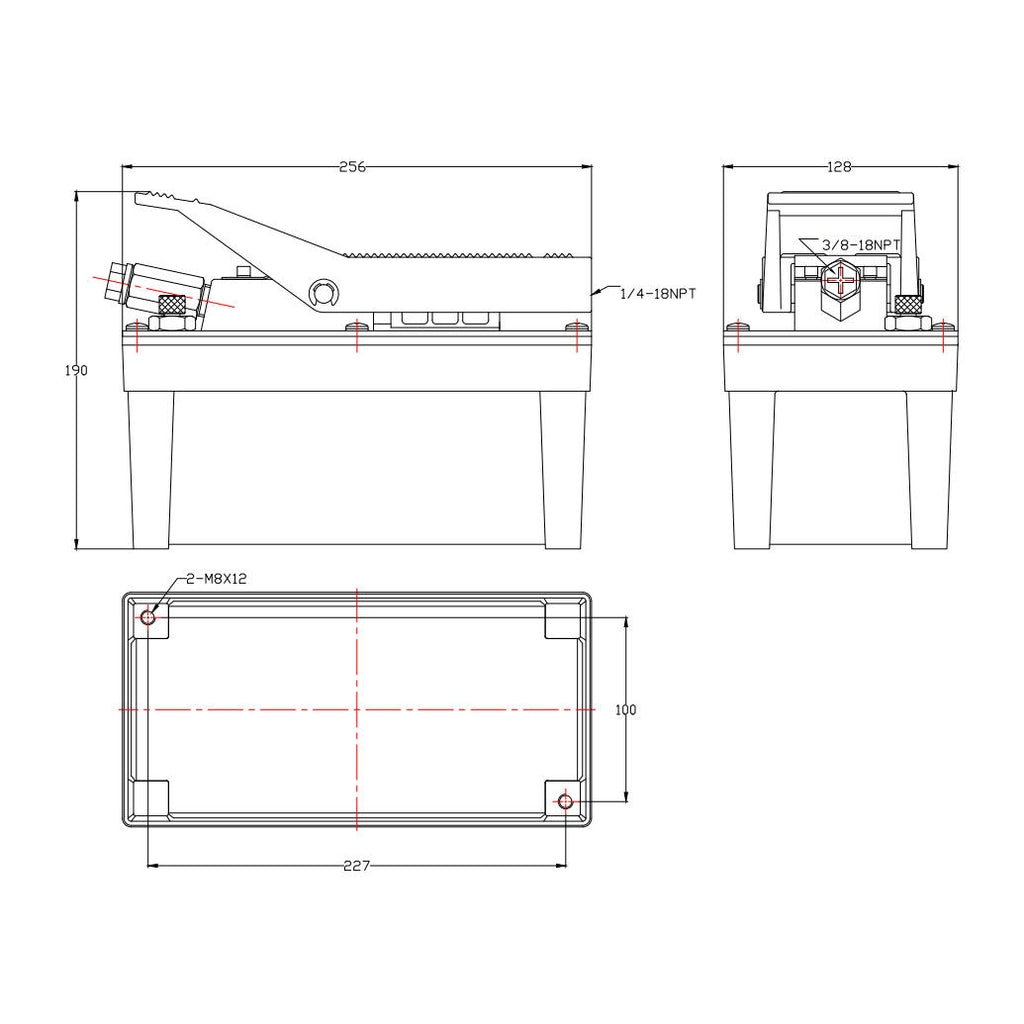

* Overall Size: 256(L) x 128(W) x 190(H)mm;
* Action: Single Acting;
* Control: Foot pedal pump - Release pressure to return fluid;
* Oil Reservoir Capacity: 1.7L;
* Hydraulic Oil Type: AW-46;
* Input Air Pressure: 40-150 PSI/2.8-10.3 Bar;
* Max Output Hydraulic Pressure: 10,000 PSI/700 Bar;
* Inlet Thread: 1/4" NPT;
* Outlet Thread: 3/8" NPT;
* Carton Size: 28x14.7x21cm;
* Weight:
- N.W.: 5.8KGS;
- G.W.: 6.2KGS;
